National Signal

Sunray SMC 1000 Three-Line Large Message Board

$19,313.00
$19,313.00
VT NH MA RI CT NJ DE MD
Approved Not Approved No Data
Jurisdiction Approved Products List Status Notes
NDOT Approved
NMDOT Approved
NJDOT Approved
NHDOT Approved
NDOT Approved
NDDOT Approved
NCDOT Approved
MDT Approved
MDOT Approved
MoDOT Approved
MnDOT Approved
MDOT Approved
MaineDOT Approved
MDOT Approved
MassDOT Approved
LaDOTD Approved
KYTC Approved
KDOT Approved
INDOT Approved
IDOT Approved
ITD Approved
Iowa DOT Approved
HDOT Approved
GDOT Approved
FDOT Approved
DelDOT Approved
CTDOT Approved
CDOT Approved
Caltrans Approved
ADOT Approved
ARDOT Approved
ALDOT Approved
AKDOT&PF Approved
WYDOT Approved
WVDOT Approved
WisDOT Approved
WSDOT Approved
VTrans Approved
VDOT Approved
UDOT Approved
TxDOT Approved
TDOT Approved
SDDOT Approved
SCDOT Approved
RIDOT Approved
Penndot Approved
ODOT Approved
ODOT Approved
NYSDOT Approved

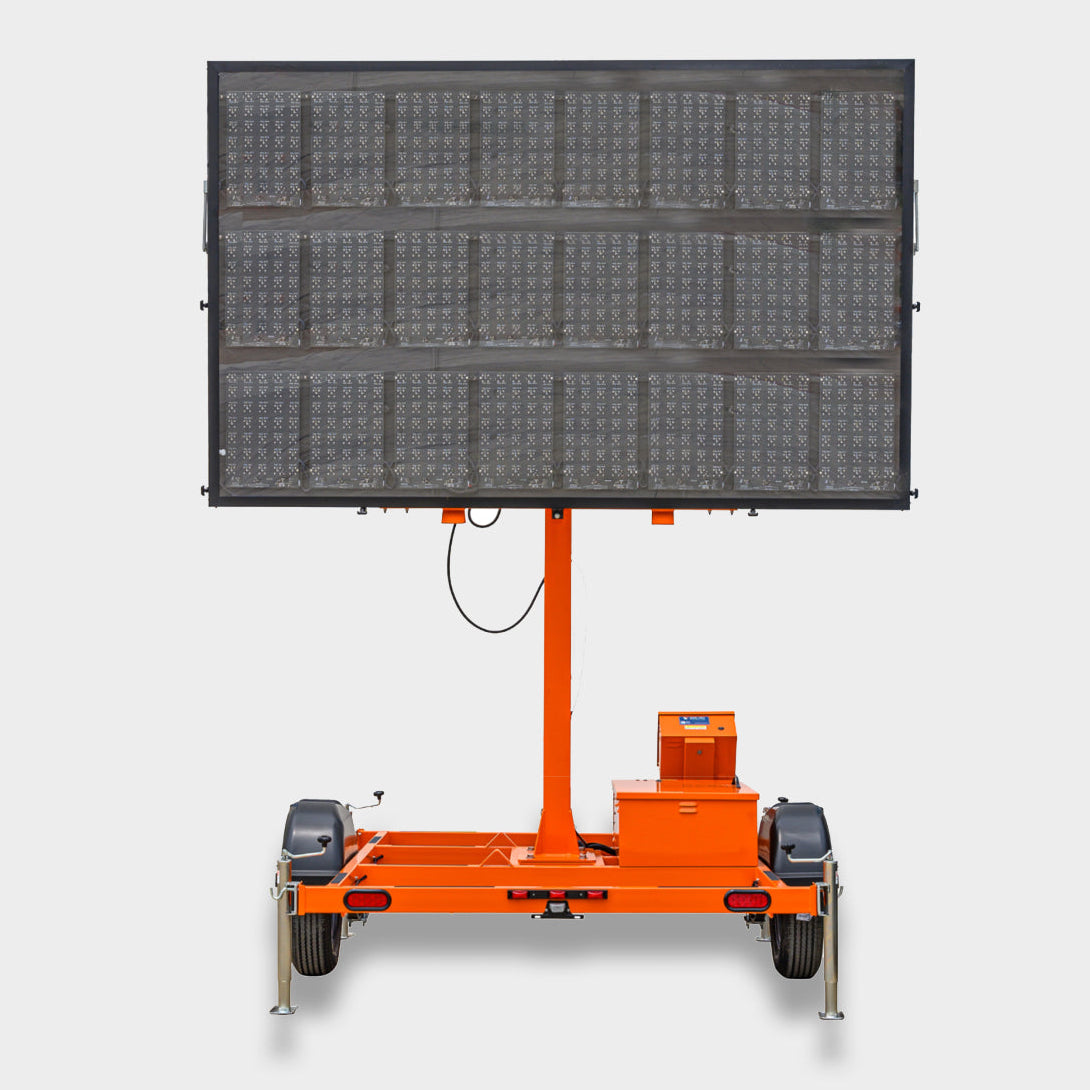

The Sunray™ SMC 1000 three-line solar message center is designed for ease of use, performance, and long-term reliability, featuring a user-friendly computer with reduced key programming and full NTCIP compliance. High-intensity LED pixel technology delivers uniform light output, improved message clarity, and excellent distance legibility. An industrial-grade, powder-coated steel trailer with an 11-gauge frame and 3,500-pound suspension ensures durable, dependable service, while modular electronic components allow quick replacement, improved diagnostics, and reduced downtime and maintenance costs.

Features:
  • Large sign panel 78” H x 134” L
  • On-board dedicated NTCIP compliant controller
  • 5 LEDs per pixel provide uniform light output
  • Energy-smart LED technology: low power draw, minimal battery maintenance, and long service life
  • Automatic brightness control: optimizes LED intensity for day/night visibility
  • Calendar programming capability
  • ITS Smart Work Zone–ready: connectivity capable for modern         work-zone deployments
  • Remote programming option available

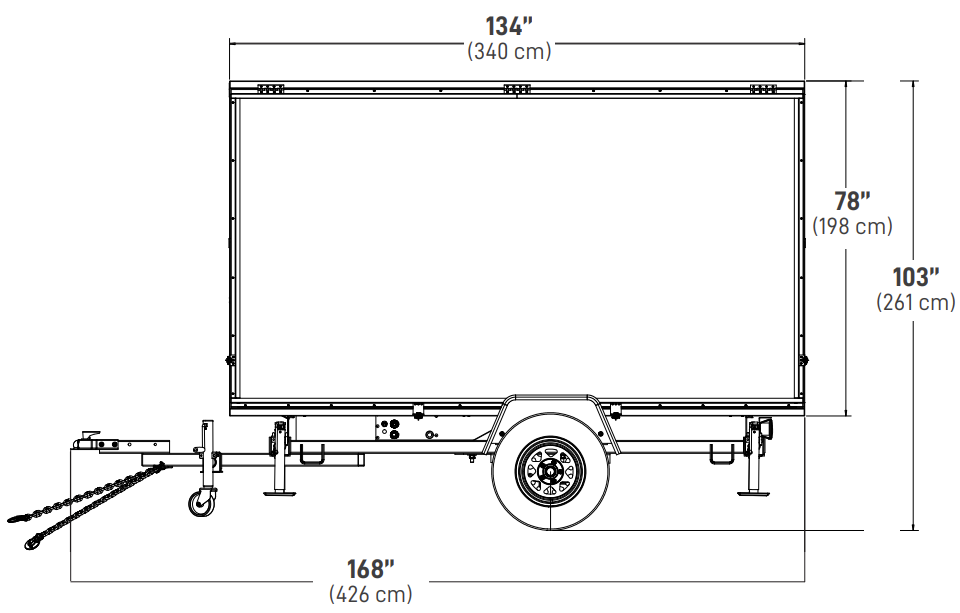

Trailer Specifications
Height (travel position) 103 in. (261 cm)

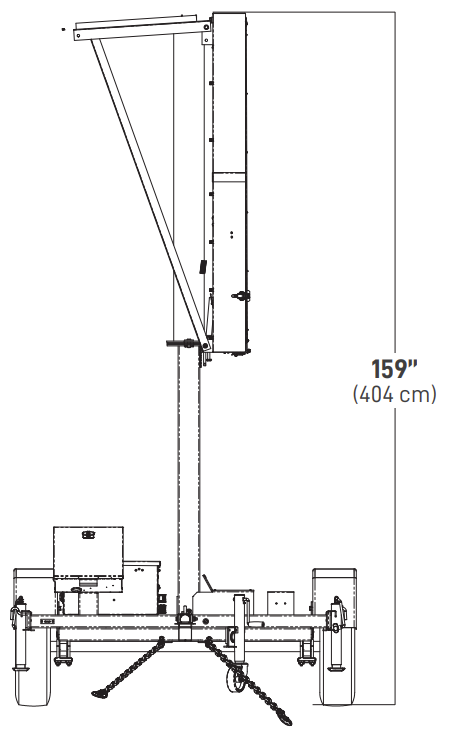

Height (display position) 159 in. (404 cm)

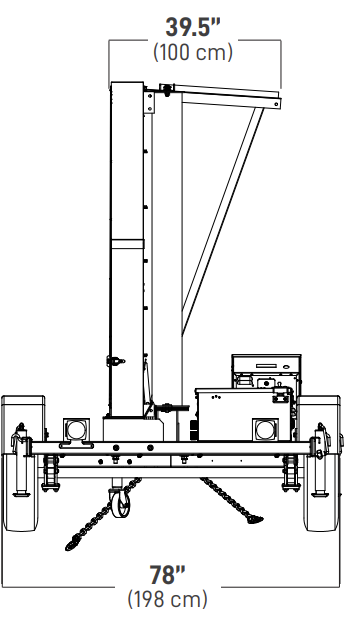

Width (outside fenders) 78 in. (198 cm)
Width (outside display sign) 134 in. (340 cm)
Length (with tongue) 168 in. (426 cm)
Length (without tongue) 130 in. (330 cm) removable
Weight 1,920 lbs (871 kg)
Tire size 14 in. (35.56 cm)
Lift mechanism Leak resistant electro-hydraulic
Main Frame 2" x 4" high-grade steel
Operating temperature range -20 to +120°F (-29 to +49°C)


SMC1000 Sign Specifications
Sign height 78 in. (198 cm)
Sign width 134 in. (340 cm)
Character Height 18 in. (46 cm)
Lamp LED (5 per pixel)
Legibility 1,000 ft (304 m)
Characters 3 rows, 8 characters per row


Power Source Specifications
Battery bank (3) 12V 4D AGM Batteries
Solar panel array One 200-watt panel


Controller Specifications
Control Console Display Capacitive Touchscreen
Pre-programmed Messages 250
User-programmed Messages 100
Update Speed 100 Milliseconds

Warranty Coverage
National Signal stands behind the quality of its products. Each product is warranted to be free from defects in materials and workmanship under normal use for a specified period from the date of purchase. During the warranty period, National Signal will repair or replace, at its option, defective parts that fail under normal use.

What’s Covered
This warranty covers defects in materials and workmanship and applies only to the original purchaser with proof of purchase.

What’s Not Covered
This warranty does not cover:

  • Damage resulting from misuse, abuse, neglect, accident, improper installation or maintenance.
  • Normal wear and tear.
  • Transportation, freight, delivery costs, or labor charges.
  • Alterations or modifications not authorized by National Signal.

How to Make a Claim
To initiate a warranty claim:

  1. Contact National Signal Customer Service at 1-888-994-0300 or via email at info@nationalsignalinc.net for instructions and to obtain a Return Goods Authorization (RGA).
  2. Return the defective part with the RGA number referenced. Warranty claims must be accompanied by proof of purchase and returned within the time frame specified in the product’s documentation.

Limitations & Remedies
National Signal’s sole obligation under this warranty is limited to repair or replacement of defective parts at its discretion. No other remedies (including incidental or consequential damages) are provided.

Additional Terms
For complete warranty terms, conditions, and durations specific to each product model, please refer to the product’s operations manual or contact National Signal Customer Service.

SMC 1000 Data Sheet  >
